Unmanned Aerial Vehicle

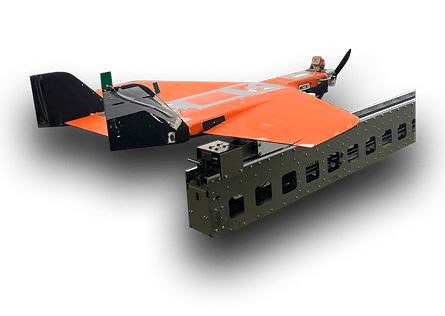

Kamikaze Plane
This kamikaze plane is a versatile and straightforward solution for many military operations. It has only two tasks – to reach the target and destroy it – but it does so exceptionally well. Reliable, fast, and uncompromising, this UAV will bolster many critical AFU missions.
General Characteristics
(11)Wingspan
1895 mm
Length
1645 mm
Height
380 mm
Maximum UAV flight range with 10 kg payload
700 km
UAV flight endurance with 10 kg payload
not more than 300 min
UAV flight speed
minimum – 130 km/h
cruise – 150 km/h
maximum – 220 km/h
UAV flight altitude
minimum horizontal flight altitude – 50 m
operational altitude – 100 m
maximum horizontal flight altitude – 1000 m
UAV readiness time from transport position
not more than 15 min
UAV readiness time from deployed position
not more than 5 min
UAV root-mean-square deviation from target in autonomous mode
not more than 10 m
UAS operating range
operating temperature from -20°C to 40°C
maximum relative humidity 95±2%
precipitation up to 5mm/h
surface wind speed up to 10 m/s
with gusts up to 15 m/s
