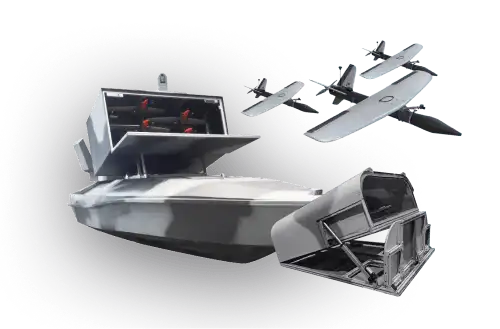

Marine Installation "Osa"
A maritime drone launches a kamikaze fixed-wing drone against enemy targets, while an experienced operator manages the process from hundreds of kilometers away. This is the concept of our "Osa" (Wasp) maritime installation. The maritime drone has a strategic configuration: a repeater quadcopter, the "Morok-5" EW system, and satellite link via Starlink. Deployment time for such an installation is up to 20 minutes, and one strike UAV can carry a 2 kg payload.
"Osa" Launcher with Repeater Drone
(8)Drone Types
Pusher-propeller "Osa" fixed-wing drone and a 10-inch repeater quadcopter
Repeater drone boxes
1 unit
"Osa" units per launcher
1 unit
Repeater drones per box
1 unit
System Connectivity
STARLINK Maritime Satellite Modem
Deployment and launch time from one launcher
up to 20 minutes
Repeater drone endurance
up to 45 minutes
Electronic Warfare System
MOROK-5 (730-5850 MHz)
"Osa" Launcher
(7)Drone Types
Pusher-propeller "Osa" fixed-wing drone
System Connectivity
STARLINK Maritime Satellite Modem
Electronic Warfare System
MOROK-5 (730-5850 MHz)
Secure Communication
with FHSS 270-530, 700-1050, 2200-2600 MHz
Analog Video Range
4.9-6.0 GHz
Target Payload
1200 to 2000 grams
Battery
4s4p Molicel P45B
"Osa" Fixed-wing FPV Drone
(10)Wingspan
1153 mm
Fuselage Length
880 mm
Maximum Take-off Weight
up to 5000 g
Speeds
Maximum: 175 km/h,
Cruising: 90 km/h,
Stall: 50 km/h
Flight Altitude
Maximum – 4000 m
Operational – 100 m
Target Purpose
Single-use detection and neutralization of specific targets in real-time – "kamikaze wing"
Connectivity
Communication via STARLINK satellite modem combined with a ground station or repeater drone
Maximum Flight Range
up to 70 km depending on the selected comms module via repeater
Target Payload Mass
500 to 2000 g depending on the selected comms module via repeater
Battery
Samsung 50S 6S3P 15000 mAh
