Drone Cameras
MAС VIEW

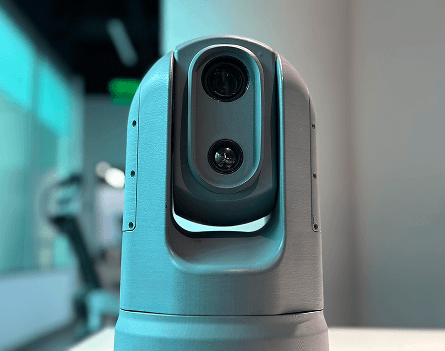

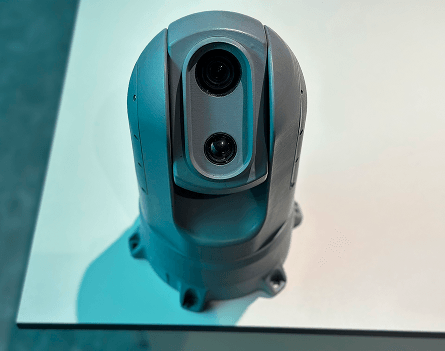

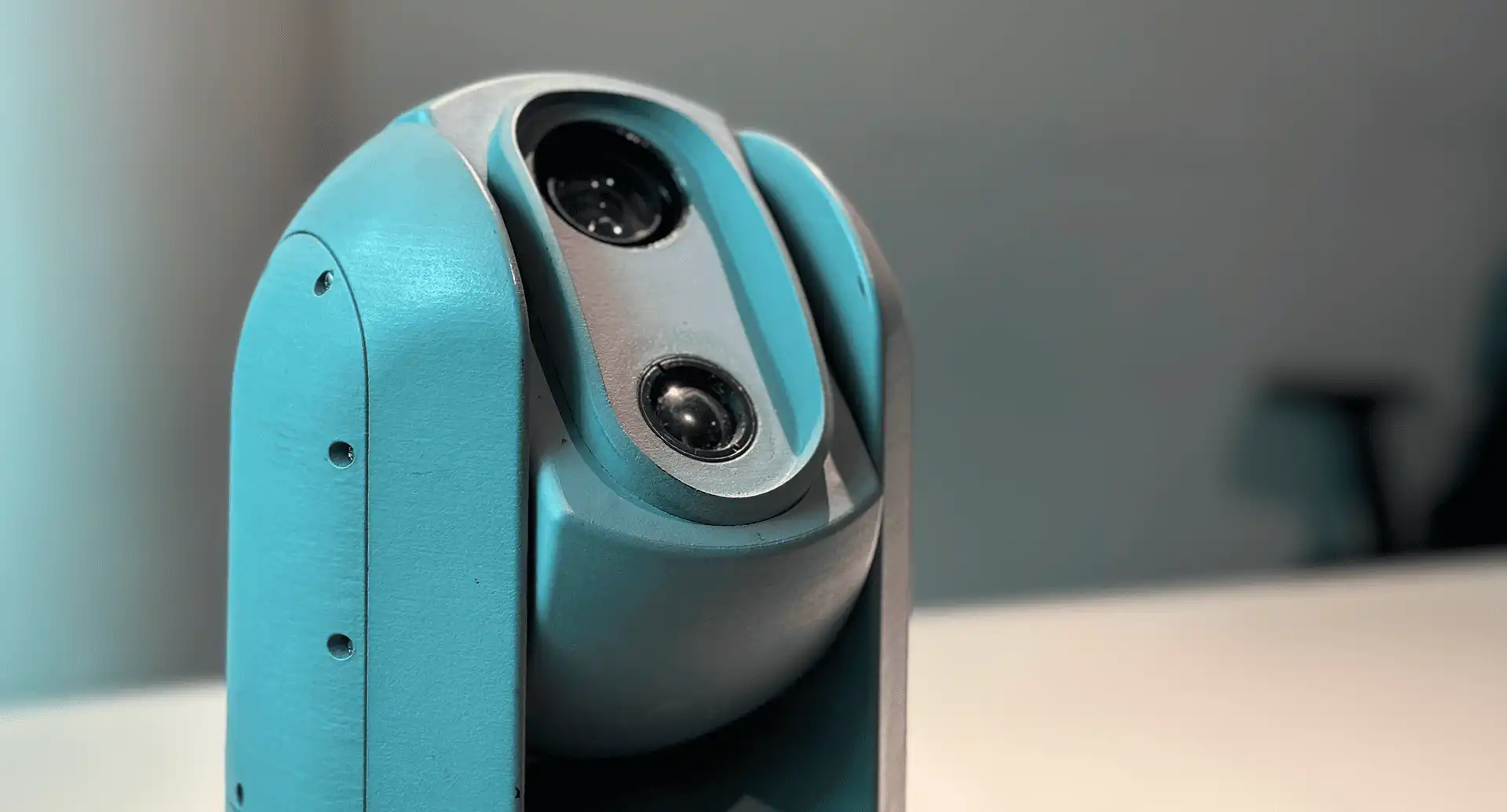

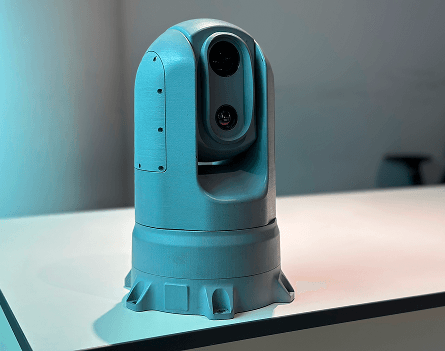

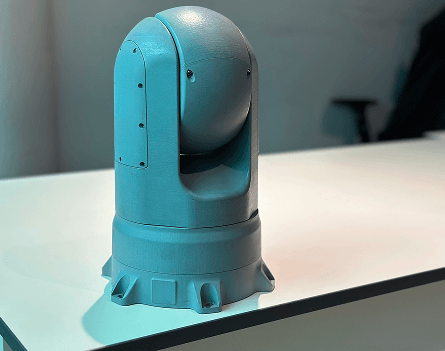

The perfect "eyes" for our maritime drones. The MAС VIEW innovative surveillance system was developed specifically for the Katran project and accounts for all nuances of maritime operations. The camera provides clear images day and night, featuring a thermal imager and optical zoom.
General Parameters
(4)Height
310 mm
Width (at widest point)
208 mm
Power Supply
24 V
Output
Ethernet
Thermal Camera
(3)Resolution
640 × 512 pixels
Field of View (FOV)
40° Horizontal, 32° Vertical
Focal Length
13 mm
Daylight Camera
(9)Focal Length
3.9 ~ 85.8 mm
Optical Zoom
30X
Focus Control
Zoom control from ground station
White Balance
Auto
Iris
Auto
Sensor
1/3” Sony CCD + Effio DSP
Effective Resolution
976(H) x 596(V)
TV Lines
700 TVL
Minimum Illumination
Color: 0.01 Lux; B/W: 0.001 Lux
More photo/video materials from MAС VIEW
