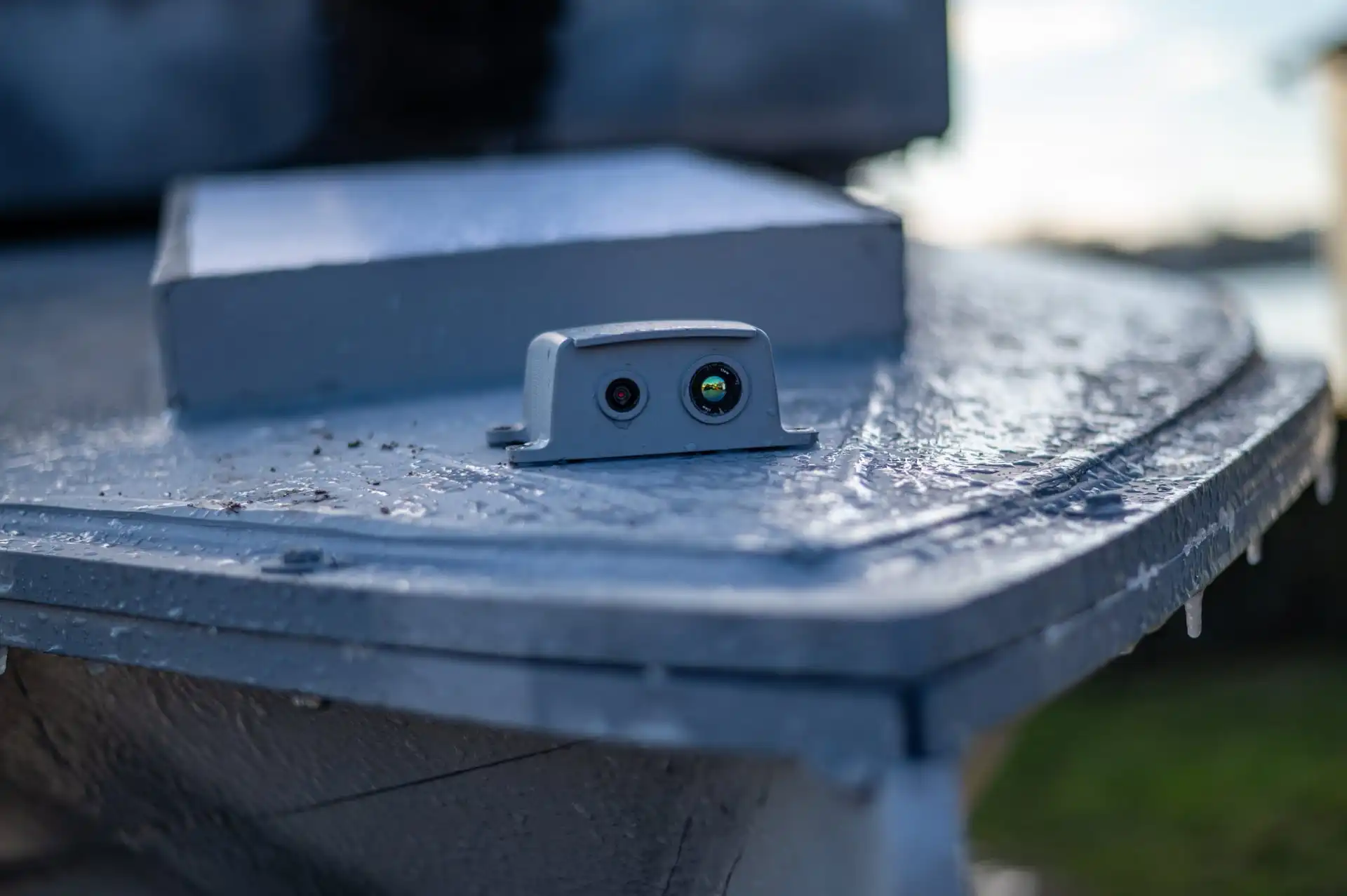

MAC View mini
MAC View mini reinforces the primary camera of the maritime drone. This complete surveillance system functions in harsh weather conditions and includes a built-in thermal imager.
General Parameters
(5)Height
77 mm
Width (at widest point)
168 mm
Length
148 mm
Power Supply
12-24 V
Output
USB
Thermal Camera
(3)Resolution
640 × 512 pixels
Field of View (FOV)
40° Horizontal, 32° Vertical
Focal Length
13 mm
Daylight Camera
(9)Focal Length
3.9 ~ 85.8 mm
Optical Zoom
30X
Focus Control
Zoom control from ground station
White Balance
Auto
Iris
Auto
Sensor
1/3” Sony CCD + Effio DSP
Effective Resolution
976(H) x 596(V)
TV Lines
700 TVL
Minimum Illumination
Color: 0.01 Lux; B/W: 0.001 Lux
